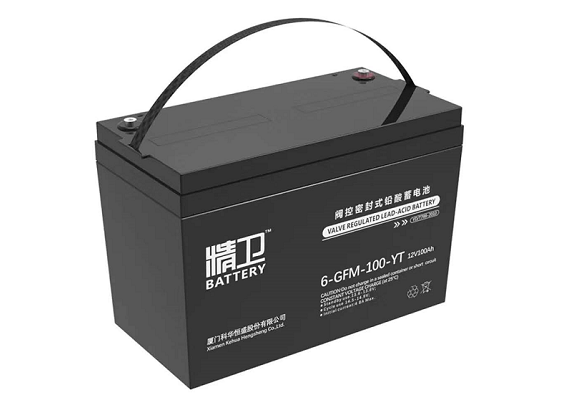

KELONG 6-GFM battery (Jingwei Series) product introduction:
KELONG GFM series control sealed lead-acid battery designed for UPS applications, superior performance, mature technology, safe, reliable, maintenance and other features, can provide users with comprehensive protection.
Application scope
Power DC system room communication DC system room UPS room
Maintenance free professional design
High reliable professional valve control sealed battery design, no leakage to ensure (3) liquid and acid mist, no corrosion
The gas generated during charging is basically recovered and reduced into an electrolyte, and no need to add water, liquid and measure the specific gravity of electrolyte when in use
Long service life
Unique formula, effectively resist the corrosion of the electrode; excellent high current discharge characteristics, reliable fast charging performance, superior depth discharge recovery ability to ensure the service life of the battery
Float design life of up to 6 years (25 C)
Minimum self discharge current
High quality and high purity materials, less than 4% per month self discharge current, reduce customer battery maintenance work
Very wide operating temperature range
The utility model can be operated at the temperature of -15 DEG C to +40 DEG C, and the internal resistance of the battery is smaller than that of the conventional battery
Reasonable installation and structural design
The latest international structure design, easy installation, easy maintenance
KELONG battery charging considerations
Charging voltage with stable standard
Long time not use battery charging battery should be adjusted
Charging capacity to more than 90% when entering the floating charge the battery reached maximum capacity
KELONG 6-GFM battery (Jingwei Series) technical parameters:
Serial number
Battery type
Rated voltage (V)
Rated capacity (Ah)
Long (mm)
Width (mm)
Gao (mm)
Reference weight (kg)
One
6GFM7
Twelve
Seven
One hundred and fifty-one
Sixty-six
Ninety-six
Two point six
Two
6GFM24
Twelve
Twenty-four
One hundred and sixty-five
One hundred and twenty-five
One hundred and seventy-seven
Nine
Three
6GFM38
Twelve
Thirty-eight
One hundred and ninety-seven
One hundred and sixty-five
One hundred and seventy-six
Fourteen
Four
6GFM65
Twelve
Sixty-five
Three hundred and fifty
One hundred and sixty-six
One hundred and seventy-five
Twenty-three
Five
6GFM100
Twelve
One hundred
Four hundred and eight
One hundred and seventy-four
Two hundred and thirty-five
Thirty-three
Six
6GFM150
Twelve
One hundred and fifty
Four hundred and ninety-five
Two hundred
Two hundred and twenty-five
Fifty-eight
Seven
6GFM200
Twelve
Two hundred
Four hundred and ninety-five
Two hundred and fifty-eight
Two hundred and forty-eight
Seventy-six
project
Technical index
Rated voltage (Vdc)
Twelve
Float charge voltage (Vdc)
13.625 + 0.15
Average charging voltage (Vdc)
14.2 + 0.15
The preservation rate of capacity (% / month)
96%
Float design life (year)
Six
Operating temperature (c)
-20 ~ +50
relative humidity
0 to 95%, no condensation
